Static / Camera-based Hand Landmark Estimation

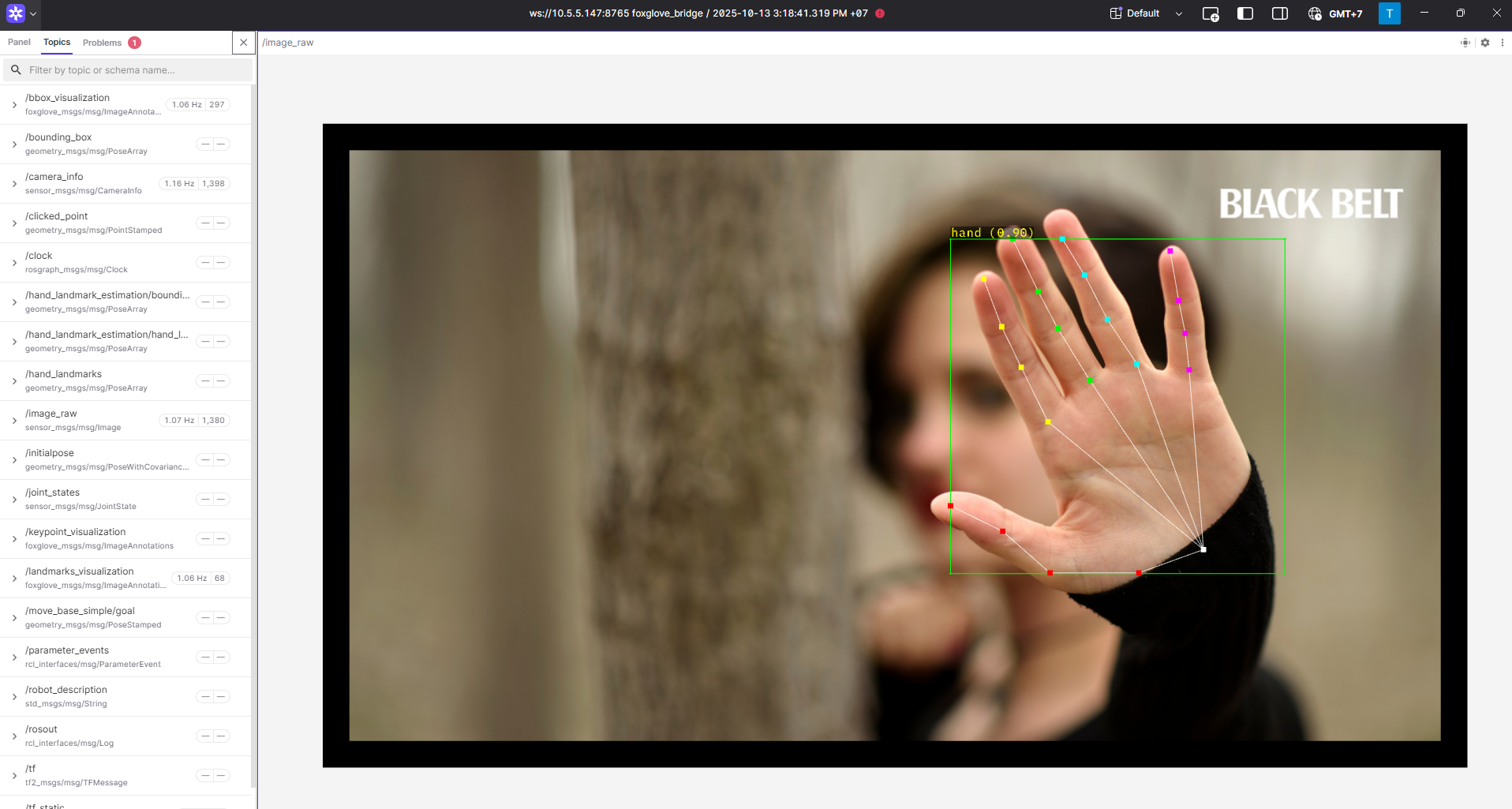

Hand Landmark Demo

The RZ/V Pose Estimation package provides the following features:

• Demonstrates the usage of the AI library (DRP-AI) wrapped in a ROS 2 node.

• Supports hand detection and landmark estimation.

• Supports real-time camera-based estimation.

• Supports static image-based estimation.

• Supports smooth landmark tracking.

• Supports a two-stage pipeline: hand detection using YOLOX models, followed by landmark estimation using various models.

• Supports multiple landmark models:

  1. MediaPipe Hand Landmark model

  2. HRNetV2 Hand Landmark model

  3. RTMPose Hand model

• Supports EMA-based landmark smoothing.

• Integrates with Foxglove Studio for visualization.

• Supports multi-threaded processing.

Quick hardware setup instructions

1. Complete the Prerequisites for Running Sample Applications.

2. Optional: Connect a compatible USB camera to the RZ/V2H RDK board for hand detection and landmark estimation.

Quick software setup instructions

Note

All subsequent operations must be executed inside the cross-compilation Docker container, which was set up in the common setup step.

1. Clone the required source from GitHub by using the vcs tool inside the Docker container.

   Get the ros2_demo_workspace repository first:

   cd ~/ros2_ws
   git clone https://github.com/renesas-rdk/ros2_demo_workspace.git


   Import the repositories by using the vcs command:

   vcs import < ./ros2_demo_workspace/vcs_manifests/hand_landmark_estimation.target.lock.repos


   It will clone all required repositories to the ./src folder.

2. Cross-compile the ROS 2 workspace and deploy it to the RZ/V2H RDK board.

   Update the APT repository list in the target sysroot.

   rzv2h-chroot apt update


   Install the dependencies to the target board first:

   sysroot-rosdep-install


   It will take time if you run this command for the first time.

   Cross-build the application:

   cross-colcon-build


   Deploy the binaries to the target board:

   scp -r install ubuntu@board_ip:~/ros2_ws/


   Note

   Replace board_ip with the actual IP address of your board. Ensure that the ros2_ws directory exists at /home/ubuntu on the target board before running the scp command.

Start the application

1. Install the required dependencies on the RZ/V2H RDK board.

   cd /home/ubuntu/ros2_ws
   source /opt/ros/jazzy/setup.bash
   rosdep install --from-paths ./install/*/share -y -r --ignore-src


   The /home/ubuntu/ros2_ws directory is the location where you copied the cross-compiled workspace on the board.

2. Launch the Static / Camera-based Hand Landmark Estimation application.

   Load the workspace environment:

   source /opt/ros/jazzy/setup.bash
   source ./install/setup.bash


   For hand landmark estimation on a static image, use:

   ros2 launch rzv_pose_estimation static_hand_landmark_estimation.launch.py


   For hand landmark estimation using camera input, use:

   ros2 launch rzv_pose_estimation camera_hand_landmark_estimation.launch.py


3. For visualization using Foxglove Studio, refer to the Foxglove Visualization section for setup instructions.

   The input layout file for Foxglove Studio is located at rzv_pose_estimation/config/foxglove/landmark_estimation.json inside the ROS 2 workspace.

For more details about the Static / Camera-based Hand Landmark Estimation application, refer to the README.md in the rzv_pose_estimation package.

• v1.0.0 (2026-03-31): Initial release of the Static / Camera-based Hand Landmark Estimation sample application.
