Overview

The RZ/V Multi-OS feature allows the RZ/V2H platform to run multiple operating systems concurrently.

This capability is particularly useful for applications that require separation of tasks, such as running a real-time operating system (RTOS) alongside a general-purpose OS like Linux.

Important

On our default IPL, the following features are enabled by default:

  • Remoteproc support

  • CM33 and CR8 invocation from U-Boot

If you want to use other features of multi-OS, such as CM33 cold boot or CA55 1.8 GHz support, feel free to contact us for support at renesas-rdk.

Attention

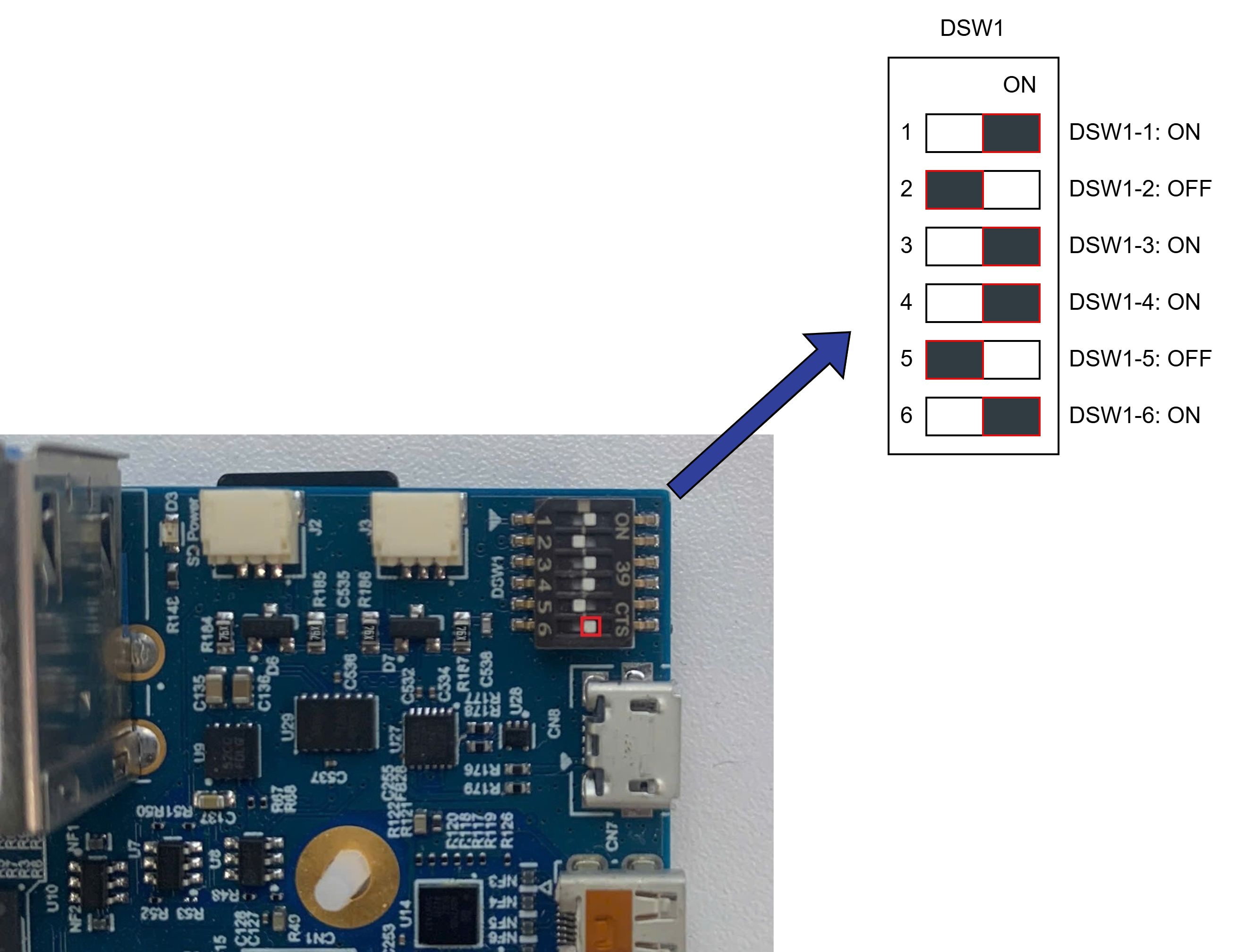

When using the J-Link debugger, ensure that the SW1-6 switch on the RZ/V2H RDK is set to the “ON” position to enable JTAG debug functionality.

RZ/V2H RDK JTAG Switch 6

RZ/V2H RDK JTAG Switch 6 ON

Useful References

The following documents and repositories are recommended for users who want to explore more about multi-OS integration and RZ/V FSP software development:

We recommend reviewing these resources to gain a deeper understanding of multi-OS capabilities and how to effectively utilize them in your projects.

Requirement

  • Ubuntu or Windows machines that can install the e2Studio and Flexible Software Package (FSP) for the Renesas RZ/V MPU Series.

  • Segger J-Link (firmware version 7.96e): JTAG debugger for flashing firmware and debugging.

  • RZ/V FSP version 3.1 installed on the development machine. Follow the instructions in the RZ/V FSP Getting Started Guide to set up the FSP.

Note for Integration

The peripherals which are NOT enabled enter Module Standby Mode after the Linux kernel is booted up. That means the peripherals used on the CM33 side might stop working at that time.

To avoid such a situation, Multi-OS Package incorporates the commit for the: drivers/clk/renesas/r9a09g057-cpg.c.

This commit prevents GTM used in RPMsg demo program from entering Module Standby Mode. If you have any other peripherals which you would like to stop entering Module Standby implicitly, please update the patch as shown below:

diff --git a/drivers/clk/renesas/r9a09g057-cpg.c b/drivers/clk/renesas/r9a09g057-cpg.c
index 438ce984a..5054389ad 100644
--- a/drivers/clk/renesas/r9a09g057-cpg.c
+++ b/drivers/clk/renesas/r9a09g057-cpg.c
@@ -336,21 +336,21 @@ static const struct rzv2h_mod_clk r9a09g057_mod_clks[] __initconst = {
                  BUS_MSTOP(6, BIT(1))),
   DEF_MOD("rcpu_cmtw3_clkm",                CLK_PLLCLN_DIV32, 4, 2, 2, 2,
                  BUS_MSTOP(6, BIT(2))),
-    DEF_MOD("gtm_0_pclk",                   CLK_PLLCM33_DIV16, 4, 3, 2, 3,
+    DEF_MOD_CRITICAL("gtm_0_pclk",                  CLK_PLLCM33_DIV16, 4, 3, 2, 3,
                  BUS_MSTOP(5, BIT(10))),
-    DEF_MOD("gtm_1_pclk",                   CLK_PLLCM33_DIV16, 4, 4, 2, 4,
+    DEF_MOD_CRITICAL("gtm_1_pclk",                  CLK_PLLCM33_DIV16, 4, 4, 2, 4,
                  BUS_MSTOP(5, BIT(11))),
   DEF_MOD("gtm_2_pclk",                     CLK_PLLCLN_DIV16, 4, 5, 2, 5,
                  BUS_MSTOP(2, BIT(13))),
   DEF_MOD("gtm_3_pclk",                     CLK_PLLCLN_DIV16, 4, 6, 2, 6,
                  BUS_MSTOP(2, BIT(14))),
-    DEF_MOD("gtm_4_pclk",                   CLK_PLLCLN_DIV16, 4, 7, 2, 7,
+    DEF_MOD_CRITICAL("gtm_4_pclk",                  CLK_PLLCLN_DIV16, 4, 7, 2, 7,
                  BUS_MSTOP(11, BIT(13))),
-    DEF_MOD("gtm_5_pclk",                   CLK_PLLCLN_DIV16, 4, 8, 2, 8,
+    DEF_MOD_CRITICAL("gtm_5_pclk",                  CLK_PLLCLN_DIV16, 4, 8, 2, 8,
                  BUS_MSTOP(11, BIT(14))),
-    DEF_MOD("gtm_6_pclk",                   CLK_PLLCLN_DIV16, 4, 9, 2, 9,
+    DEF_MOD_CRITICAL("gtm_6_pclk",                  CLK_PLLCLN_DIV16, 4, 9, 2, 9,
                  BUS_MSTOP(11, BIT(15))),
-    DEF_MOD("gtm_7_pclk",                   CLK_PLLCLN_DIV16, 4, 10, 2, 10,
+    DEF_MOD_CRITICAL("gtm_7_pclk",                  CLK_PLLCLN_DIV16, 4, 10, 2, 10,
                  BUS_MSTOP(12, BIT(0))),
   DEF_MOD("wdt_0_clkp",                     CLK_PLLCM33_DIV16, 4, 11, 2, 11,
                  BUS_MSTOP(3, BIT(10))),

Please edit the r9a09g057-cpg.c file accordingly and re-build the Linux Image to ensure the desired peripherals remain active during Multi-OS operation.

For how to build the Linux Image, please refer to the RZ/V2H RDK Linux Image Build Guide.

Device tree modification

If you plan to use the CM33/CR8 cores to control the peripherals, you need to make sure that the Linux kernel does not bind those peripherals to any drivers.

There are two methods to disable a peripheral in the device tree:

Method 1: Modify the Device Tree Source

  1. Open the device tree source file:

    linux-rz/arch/arm64/boot/dts/renesas/rzv2h-rdk-ver1.dts

  2. Find the peripheral node you want to disable. For example, to disable spi0, locate the following block:

    &spi0 {
    pinctrl-0 = <&master_spi0_pins>;
    pinctrl-names = "default";
    status = "okay";

    spidev@0 {
        compatible = "semtech,sx1301";
        reg = <0>;
        spi-max-frequency = <2000000>;
    };
};

  3. Change the status property from "okay" to "disabled":

    &spi0 {
    pinctrl-0 = <&master_spi0_pins>;
    pinctrl-names = "default";
    status = "disabled";

    spidev@0 {
        compatible = "semtech,sx1301";
        reg = <0>;
        spi-max-frequency = <2000000>;
    };
};

  4. Rebuild the Linux image. For instructions, refer to the RZ/V2H RDK Linux Image Build Guide.

Method 2: Disable the Overlay via uEnv.txt

If the peripheral is enabled through a device tree overlay, you can disable it without rebuilding the device tree.

  1. Open the U-Boot environment file on the target board:

    sudo vi /boot/uEnv.txt

  2. Find the overlay entry corresponding to the peripheral you want to disable and comment it out by adding a # at the beginning of the line. For example, to disable the SPI overlay:

    # uEnv.txt for RZV2H RDK board
# Refer to readme.txt for more information on setting up U-Boot Env
#enable_overlay_audio_codec=1
enable_overlay_can=1
#enable_overlay_spi=1 # Comment out this line to disable the SPI overlay
#
# Config for loading the dtbo
#
# Other settings...

    In the example above, enable_overlay_spi is commented out (disabled), while enable_overlay_can remains active.

  3. Save the file and reboot the board:

    sudo reboot

For more details on device tree overlays, refer to Device Tree Overlay.

Note

Use Method 1 when the peripheral is defined directly in the base device tree source (rzv2h-rdk-ver1.dts).

Use Method 2 when the peripheral is enabled through a device tree overlay loaded at boot time.

How to Create the New Project for RZ/V2H RDK

To create a new project for the RZ/V2H RDK board using the RZ/V Flexible Software Package (FSP) and e2Studio, follow these steps:

  1. Open e2Studio and create a new Renesas FSP project.

  2. Choose File > New > Renesas C/C++ Project > Renesas RZ > Renesas RZ/V C/C++ FSP Project.

  3. Enter the Project name and location.

  4. Select the Custom User Board (for RZ/V2H), the Device R9A09G057H44GBG, and the target core: CM33 or CR8.

  5. If you select the CR8 core, please select the appropriate Preceding Project/Smart Bundle Details.

    This setup is necessary to ensure that there are no conflicts in hardware resource usage between the CM33 and CR8 cores when both are running on the RZ/V2H platform.

  6. Configure the Build artifact type, RTOS selection and Sub-core selection as needed.

  7. Configure the Project Template Selection, and click on the Finish button to create the project.

  8. Once the project is created, you can start adding your application code and configuring the necessary peripherals using the FSP.

We also provide a sample project for the RZ/V2H RDK board with Multi-OS Package.

Please follow the next section to import the sample project.
